Hamilton Electric Bikes

, , , , ,

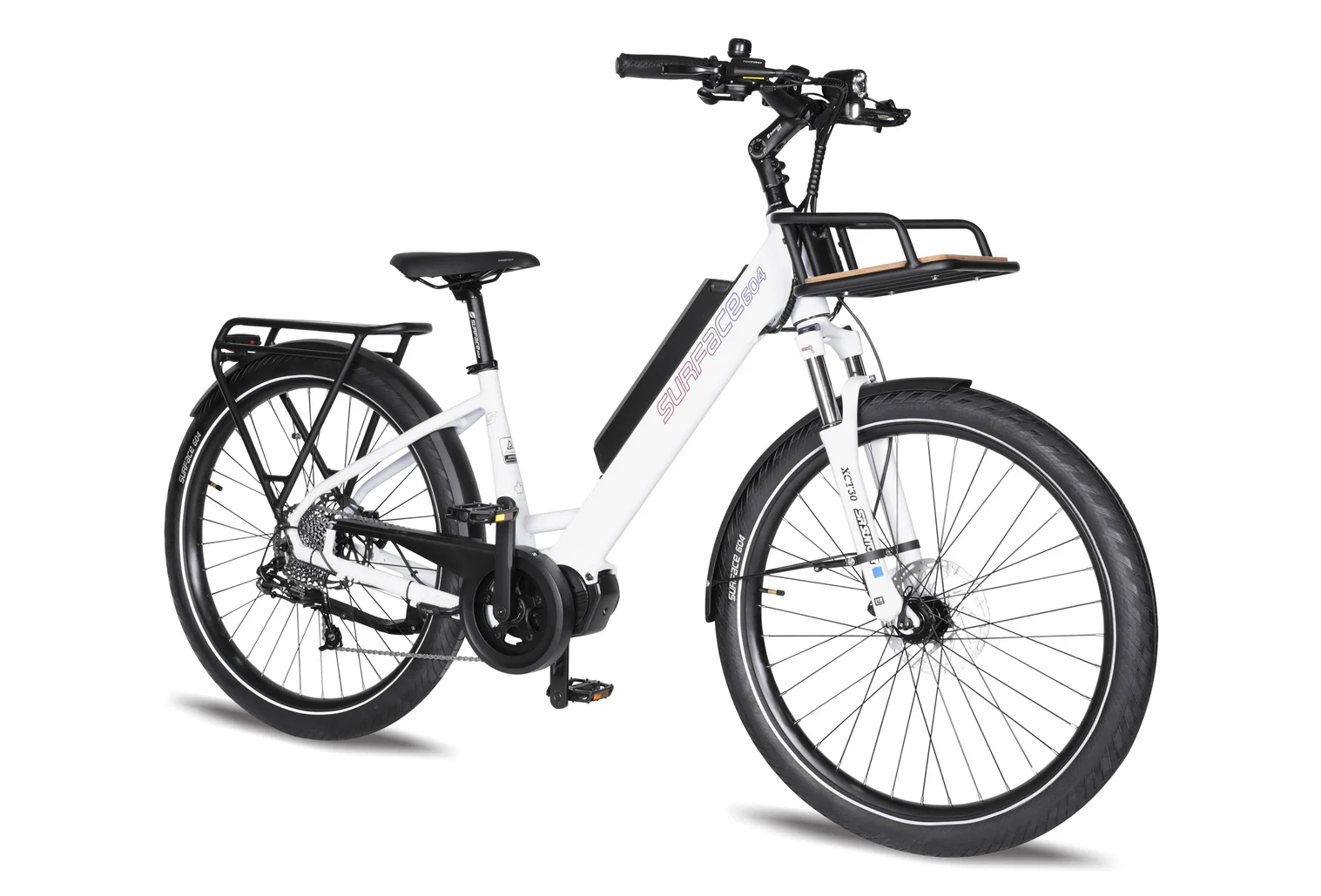

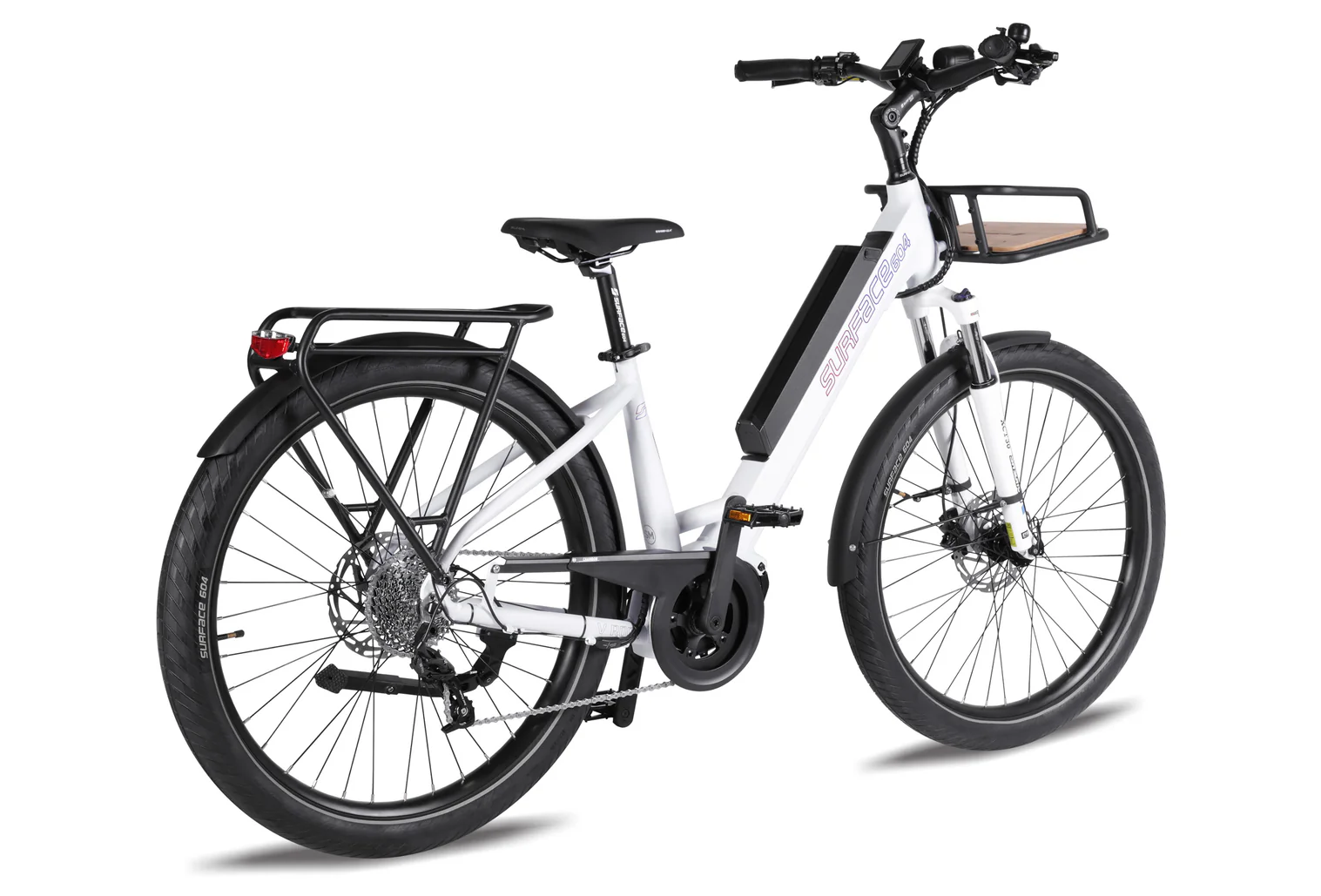

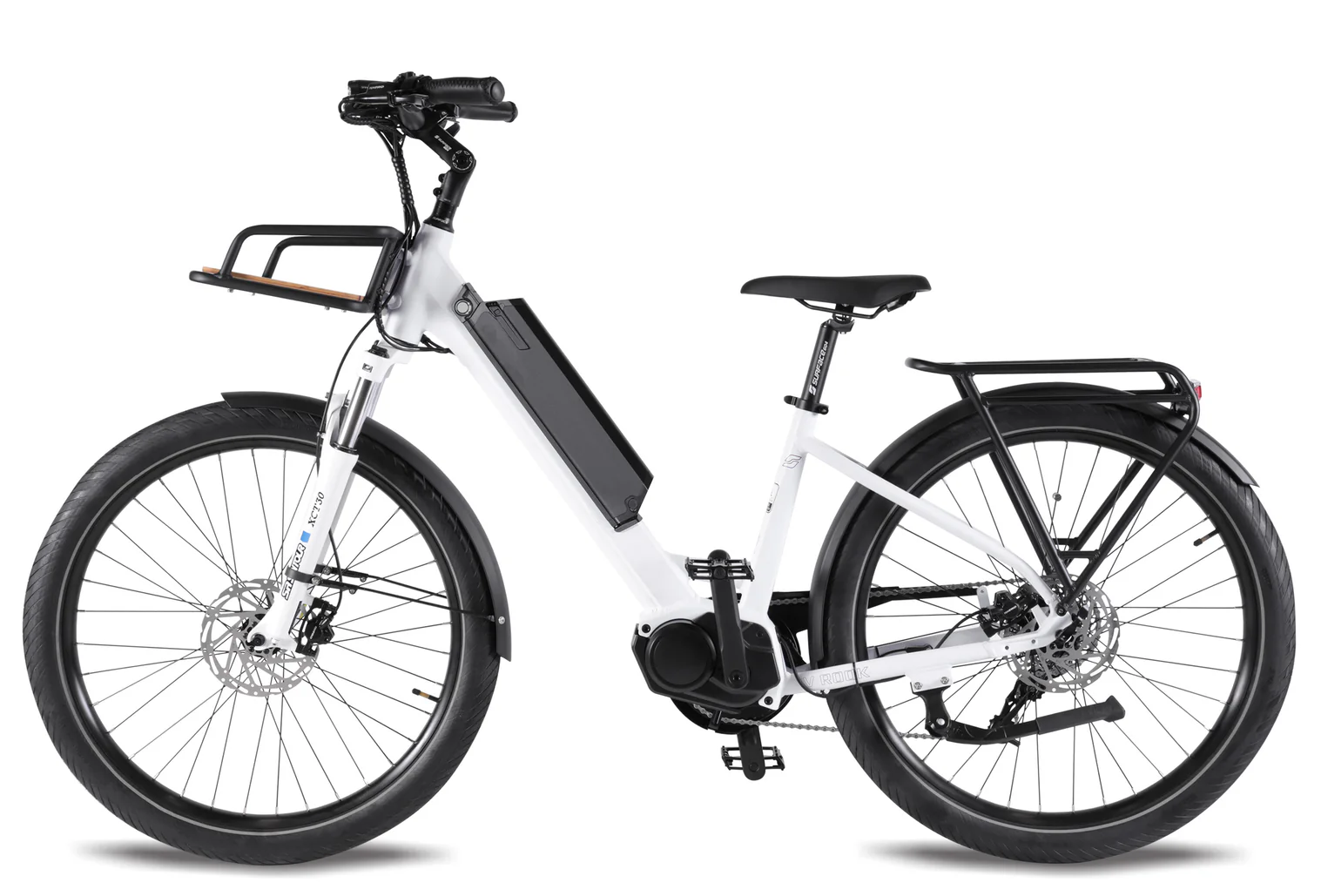

Surface 604 V-Rook : Commuter Step-Through

$3,299.99

SR SUNTOUR XCM 27.5 SUSPENSION FORK
(80MM WITH QUICK RELEASE)
27.5″ X 2.4″ SURFACE 604 TIRES WITH PUNCTURE PROTECTION AND REFLECTIVE SIDEWALL
TEKTRO AURIGA HYDRAULIC DISC BRAKES WITH 180MM ROTOR
SHIMANO ALIVIO 9-SPEED DRIVETRAIN
TORQUE SENSOR SYSTEM
SELLE ROYALE ERGONOMIC GEL SADDLE

    TORQUE SENSING PEDAL ASSIST

    World class torque sensing pedal assist – because an electric bike is only as good as it’s power distribution.

    Precision torque sensing performance at 104 cadence pulses per revolution; 1,000 torque samples per second.

    Rook’s incredibly smooth torque sensor knows how hard you’re pedaling down to the microsecond and matches it with proportionate power.

    Custom drop out design delivers whisper smooth assist at any level.

    POWERFUL 500W MOTOR

    48V 500W electric motor purpose built for speed and power. Enjoy the quiet and consistent power distribution at any speed.

    Geared for performance – we paired all that power with an industry-leading 12mosfet 25A controller giving the Shred unmatched torque and speed.

    Leave other riders envious as you effortless fly past

    LONG RANGE BATTERY

    Offering two high-capacity battery options:

    48V14ah (672wh) 3500mah cell size, Samsung Cells 18650, Made in Korea, USB Plug, capacity indicator button, Range up to 45 Miles (72 Kms), Weight: 7.59 LBS (3.45 KG)

    48V20ah (960wh) 5000mah cell size, (Same as in Tesla), Samsung Cells 21700, Made in Korea, USB Plug, capacity indicator button, Range up to 65 Miles (105 Kms), Weight: 10.23 LBS (4.65 KG)

    FRONT RACK INCLUDED

    Custom built front rack mounts and front rack designed specifically for V Rook.
    It comes with removable wooden panel and two water bottle cage mounts.
    Rack can hold up to 20kg (45 LBS).

    3MM ANTI-PUNCTURE PANARACER TIRE

    3mm “Green Shield ” technology is 40% more puncture proof than a regular tire without it.

    FRONT RACK WATER BOTTLE BOSSES X2

    Front Rack comes with pre-drilled left & right water bottle bosses.
    Now the water bottles can be right in the front for easy reach.
    Other gadgets can be installed as well.
    (Water bottles and cages are sold separetly).

    KEY TECH SPECS

    SR SUNTOUR XCM 27.5 SUSPENSION FORK
    (80MM WITH QUICK RELEASE)
    27.5″ X 2.4″ SURFACE 604 TIRES WITH PUNCTURE PROTECTION AND REFLECTIVE SIDEWALL
    TEKTRO AURIGA HYDRAULIC DISC BRAKES WITH 180MM ROTOR
    SHIMANO ALIVIO 9-SPEED DRIVETRAIN
    TORQUE SENSOR SYSTEM
    SELLE ROYALE ERGONOMIC GEL SADDLE
    LARGE FIXED-COLOR LED DISPLAY WITH USB JACK
    POWERFUL BÜCHEL SECU FORTE LED FRONT HEADLIGHT / REAR LED LIGHT
    CUSTOM FRONT RACK / WELDED REAR RACK

    Colour

    Black, Pink, White

    ebike Size

    17.5" S/M Surface 604, 19.5" M/L Surface 604

    Number of Gears

    9 Speed

    Motor

    500W (Peaks At 750W) Bafang Geared Hub Brushless Motor

    Drive Mode

    Drop Out Torque Sensing Pedal Assist with a Throttle

    Torque

    65Nm of Torque

    Throttle

    Thumb Push Activated Throttle

    Controller

    SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller

    Top Speed

    20mph (32kmh)*, Comes as Class 2
    (Unlocked) 30mph (48kmh), as Class 3

    Battery

    Included: 48V 20Ah / 960Wh
    Samsung lithium-ion 21700 cells

    Battery Range

    Up to 65mi (105km) with a 48V20Ah Battery

    Battery Charge Time

    3-4 Hours for a Full Charge from Empty

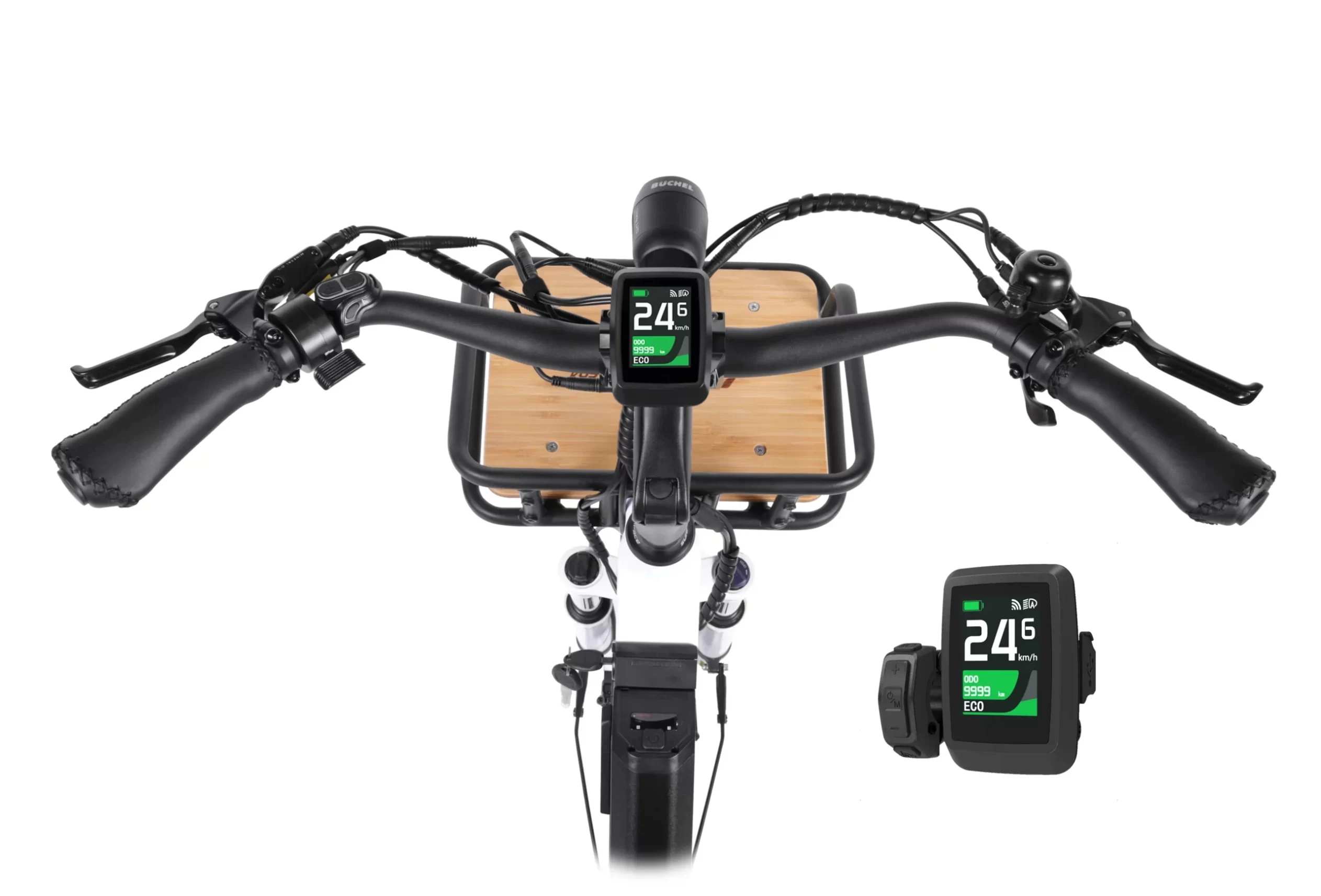

    Display Type

    SURFACE604 Color LCD Display with USB Jack
    Bigger display: 3.5″ for 2023

    Lights

    BÜCHEL SHINY 120 front headlight / Rear LED light

    Fork

    SR SUNTOUR XCM 27.5, 80mm with Axle Thru Hub

    Motor Wire Harness

    30Ah, can handle up to 120C current (upgraded)

    Derailleur

    SHIMANO ALIVIO 9-Speed

    Cassette

    SHIMANO 11-36T Cassette

    Shift Levers

    SHIMANO ALIVIO

    Brakes

    TEKTRO Auriga Hydraulic Disc Brakes
    Post Mount, with Motor Inhibitors

    Crank Set

    SAMOX 42T Front Sprocket

    Rotors

    180mm Front/Rear x 2.34mm Thick

    Bottom Bracket

    SAMOX Sealed Bottom Bracket

    Frame Type

    Straight steerer Headtube, Custom Reinforced Battery Mounts
    Internal Cable Routing, Post Mount Brakes

    Frame Material

    6061 Aluminum Alloy

    Stem

    SATORI Up2+, Adjustable

    Head Set
    Handlebar

    PROMAX Aluminum, 30mm Rise With 45° Backsweep, 710mm Wide

    Pedals

    WELLGO Platform, with Die Casting Body

    Chain

    KMC 9-Speed

    Seat Post Diameter

    30.4mm

    Saddle

    Selle Royal Gel Saddle “Essenza Plus”
    with elastomer (Relaxed)
    suitable for City/Tour use
    FLEXITE shell features a unique indented structure,
    adding superb flexibility and shock absorption
    Adjustable up to 9 degrees.

    Wheels/Tires

    27.5″ X 2.4″ Custom S604 Panaracer Tires With Puncture Protections
    3mm “Green Shield” technology, 40% more puncture proof then regular tire

    Rims

    Aluminum Alloy Double Wall Rim, 27.5”x13Gx36H

    Front Hubs

    Surface604 Aluminum

    Kickstand

    Adjustable Heavy-Duty Aluminum

    Standover Height

    Small-Medium: 28.5” (724mm)”
    Medium-Large: 30” (762mm)

    Recommended Rider Height

    Frame Sizes: S/M – 17.5″, M/L – 19.5″
    For Riders: S/M 5’2”-5’7”, M/L 5’8” – 6’6”

    Net Weight (Including Battery)

    27.75KG/61lbs (20AH)

    Battery Weight

    20AH battery 4.65KG/10lbs

    Weight Capacity

    285lbs (130kg)

    Standard Features

    Welded Rear Rack, Adjustable Kickstand, Water Bottle Bosses

    Optional Upgrade Features

    NCX Suspension Seat Post
